JIS AISI ASTM GB DIN EN 304 304L 316 316L Stainless Steel Sheet Plate 1000mm 1219mm 1500mm

Name: JIS AISI ASTM GB DIN EN 304 304L 316 316L Stainless Steel Sheet Plate 1000mm 1219mm 1500mm
Brand: JIANGSULIANZHONG
Price: 1 USD

China JIS AISI ASTM GB DIN EN 304 304L 316 316L Stainless Steel Sheet Plate 1000mm 1219mm 1500mm wholesale

Brand Name : JIANGSULIANZHONG

Model Number : GB AISI ASTM BS DIN JIS

Certification : API, CE, SNI, SASO, sirm, tisi, KS, JIS, GS, ISO9001

Place of Origin : JIANGSU

MOQ : 1 MT

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000MT/Month

Delivery Time : 3-15 days

Packaging Details : Waterproof paper and wooden pallet or according to customer's request

Name : Stainless Steel Sheet

Thickness : 0.2mm-100mm

Width : 20-160mm. Customizable, 100mm-2000mm

Tolerance : ±1%

Grade : 300 Series,Customizable, 600 Series,200 Series,300 Series, 400 Series

Surface Treatment : BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D

MOQ : As your requirement

Processing Service : Welding, Punching, Cutting, Bending, Decoiling

Contact Now

304 304L 316 316L Stainless Steel Sheet Plate Coil

Detail

Stainless steels are defined as ferrous alloys with the addition of at least 10.5%

Chromium by weight and are essentially low carbon steels containing significant amounts of chromium. It is the addition of chromium that gives this type of steel its corrosion resisting properties.

Stainless steel coil is used for a huge variety of applications in many diverse industries including nuclear, pharmaceutical, food processing, petrochemical, architecture, and chemical transportation.

Item	Stainless Steel coil (Hot rolled, cold rolled)
Thickness	0.3~10.0mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc
Grade	200 Series:201,202300 Series:301,304,304L,309S,310S,316,316L,317L,321,347,347h400 Series:409,410,420,430

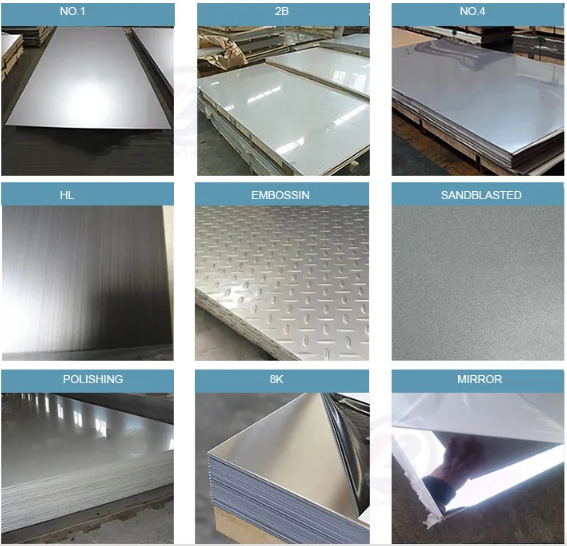

Surface	Surface and finish of stainless steel 304 coil:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc
Brand:	Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin
Manufacturer:	POSCO, Baosteel, TISCO.
Package	Shrink-wrapped, Carton boxes, Wooden pallets, Wooden boxes, Wooden crates Etc. or as required.
Export to	India, Indonesia, Malaysia, Singapore, Saudi Arabia, Qatar, UAE, Iran, Iraq, Oman, South Africa, Nigeria, Kenya, Italy, UK, Brazil, , Egypt, Kuwait, Taiwan, Australia.

Chemical Composition and Mechanical Property

Grade	C(%)	Si(%)	Mn(%)	P(%)	S(%)	Cr(%)	Ni(%)	N(%)	Cu(%)
304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	18.00-20.00	8.00-10.50	≤0.10	/
304L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	18.00-20.00	8.00-10.50	≤0.10	/
304H	0.04-1.00	≤1.00	≤2.00	≤0.045	≤0.03	18.00-20.00	8.00-10.50	≤0.10	/

Grade	Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	Rate Of Reduction In Area (%)	Density (G/Cm3)	Hardness (HB) (HRB) (HV)
304	≥515	≥205	≥40	/	7.93	≤201HBW;≤92HRB;≤210HV
34L	≥515	≥205	≥40	/	7.93	≤187HB; ≤90HRB; ≤200HV
304H	≥515	≥205	≥40	/	7.93	/

Grade	C(%)	Si(%)	Mn(%)	P(%)	S(%)	Cr(%)	Ni(%)	Mo(%)	Cu(%)
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16.0-18.00	10.00-14.00	2.00-3.00	/
316L	≤0.03	≤1.00	≤2.00	≤0.045	≥0.15	16.0-18.00	10.0-14.00	2.00-3.00	/

Grade

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)

Rate Of Reduction In Area

(%)

Density

(G/Cm3)

Hardness

(HB)

(HRB)

(HV)

316

≥620

≥310

≥30

≥40

7.98

≤187HB;≤90HRB;≤200HV

316L

≥620

≥310

≥40

≥60

7.98

≤187HB; ≤90HRB; ≤200HV
